This guide explains how to use the Database Documentation generator. This feature was introduced in version 2025.5.
To use it, you must run both Architect and Server in version 2025.5 or newer.
Additionally, you must update your model by upgrading the system packages and adding the new package Documentation. They are all available in the file origam-model.zip in the release assets.
Documentation content
This feature, located in a new package named Documentation, provides a read-only screen with basic documentation of database table fields from all entities in all referenced and subordinate packages that contain entities.
It displays only real database fields — no virtual fields, no functional fields, and no lookups. Only fields that physically exist in the database are shown.
For each field, the following attributes are displayed:
- Caption
- Name
- AllowNulls
- DataType
- DataLength
- Entity name
- DefaultValue
- IsPrimaryKey
- ForeignKeyEntity
- ForeignKeyFiled
- Documentation fields
How to install

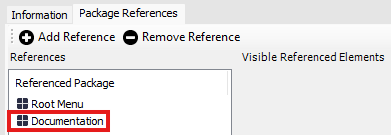

To enable this feature in your project, activate the Documentation package by adding it to your project’s package references:
How to use
A user with permission to access this feature will find it in the client application under the main menu:

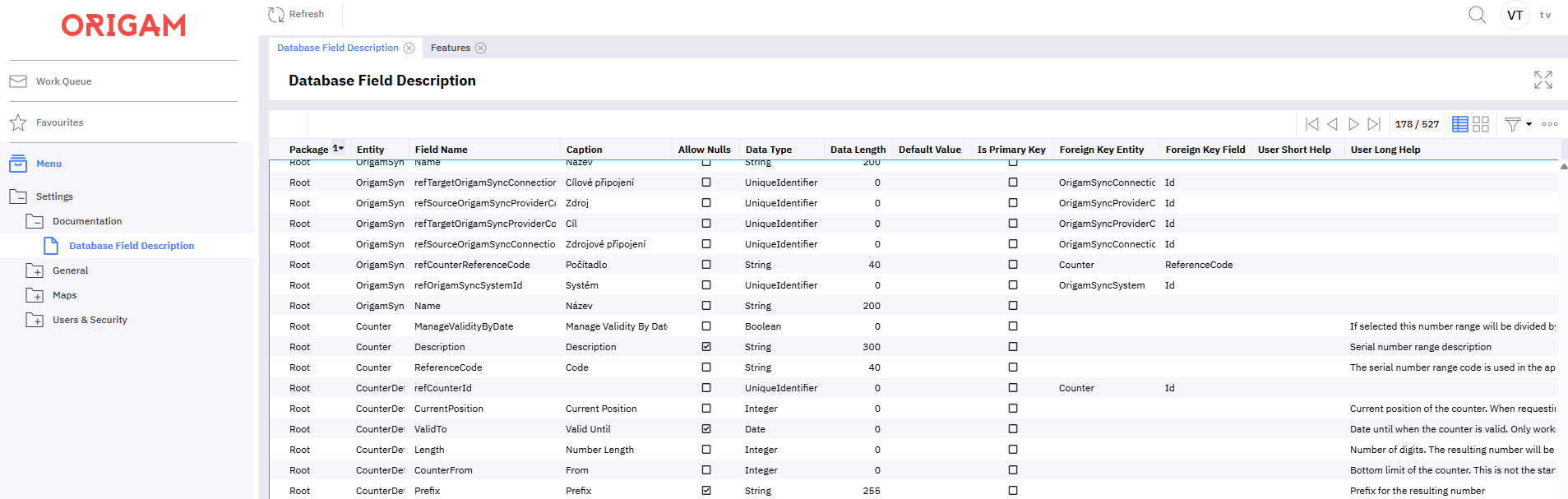

Settings / Documentation / Database Field Description:
By default, the screen displays all fields from your package, including those from referenced system packages such as Root or Security.
If you want to view only the fields from specific packages, you can filter them accordingly.
